TIGMMA-250-25M-Shenyuan Electro-machinery Incorporated Corporation

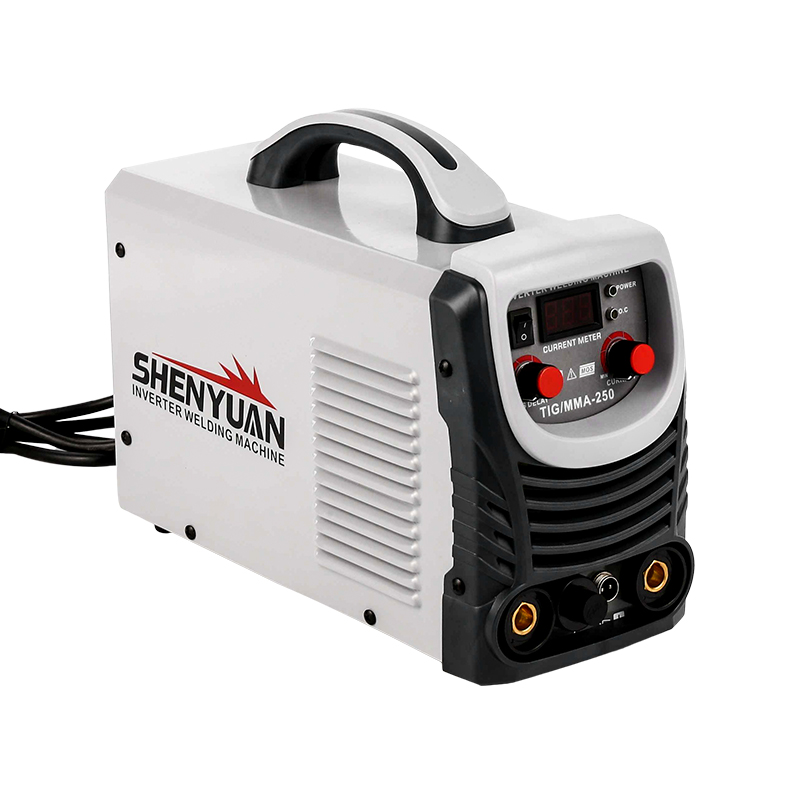

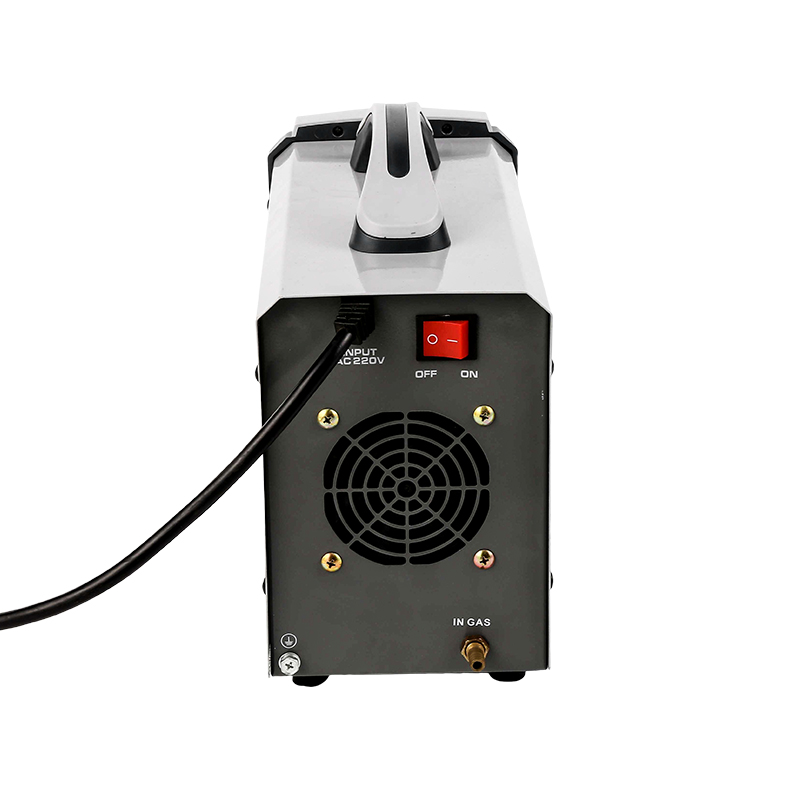

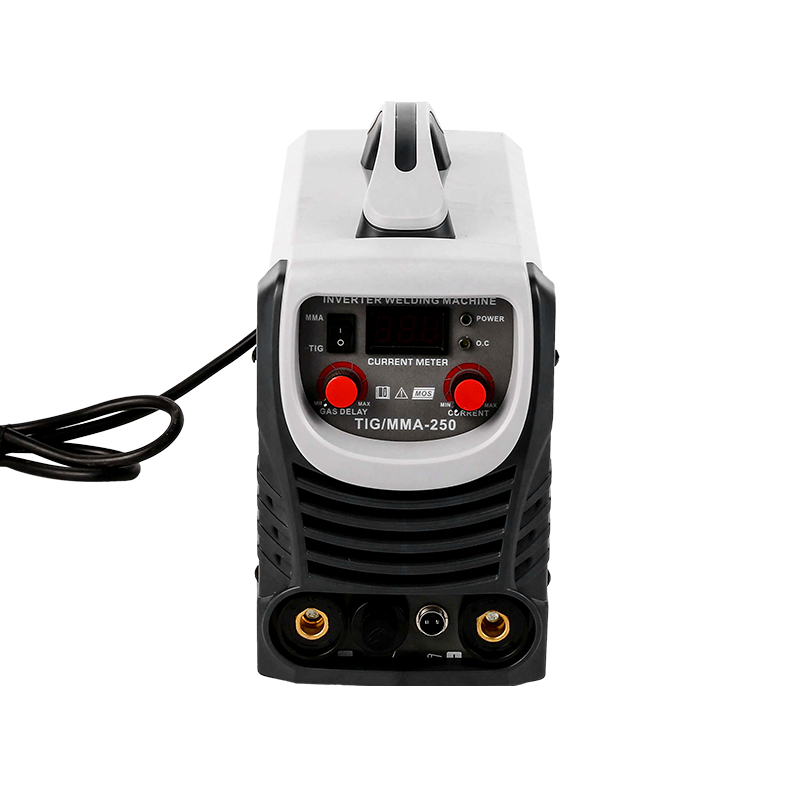

TIGMMA-250-25M

Contact us

Product Details
leave a message

MODEL	TIG/MMA-180 -25M	TIG/MMA-200 -25M	TIG/MMA-250 -25M	TIG/MMA-315 -25M	TIG/MMA-400 -25M	TIG/MMA-315 -N-25M	TIG/MMA-400 -N-25M
Rated input voltage(V)	1~230	1~230	1~230	3~380	3~380	3~380	3~380
Rated input voltage(V)	1~110	1~110	1~110	/	/	/	/
No-load voltage(V)	56	56	56	60	60	60	60
Current range(A)	10-180	10-200	10-250	10-315	10-400	10-315	10-400
Rated duty(%)	60%	60%	60%	60%	60%	60%	60%
Input capacity(KVA)	3.9	4.5	6.3	8.9	13	8.9	13
Class of insulation	F	F	F	F	F	F	F
Weight(Kg)	6.8	7	7.2	26	28	30	32
