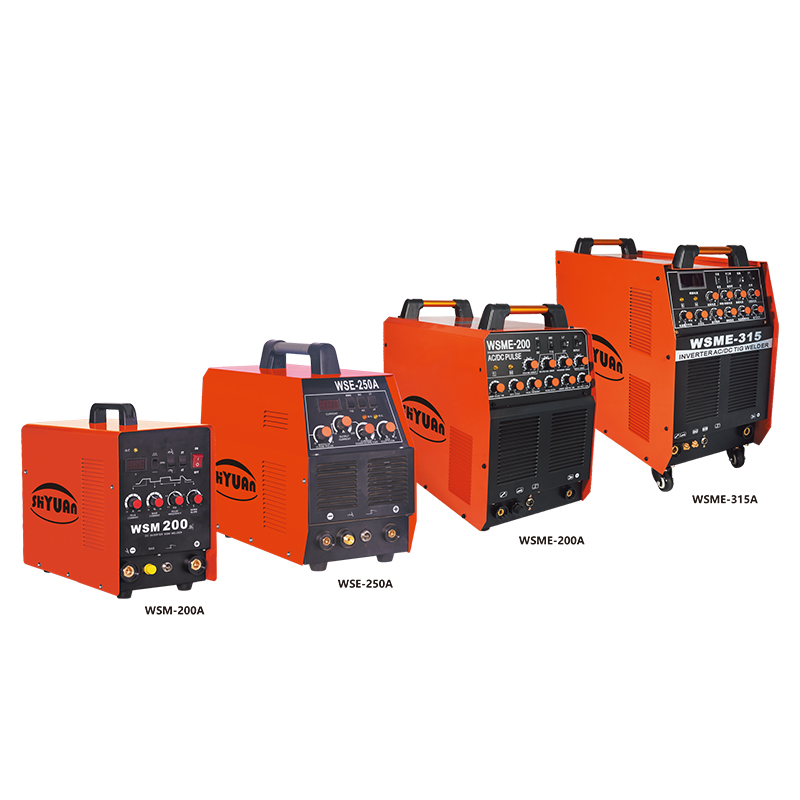

WSE/WSME Series

INVERTER SPUARE WAVE AC/DC ARGON ARCWELDING MACHINE

Instruction:

● Inverter IGBT technique makes the welder more strong to work with best welding effecit.

● With pulse function, can weld both thin and thick parts perfectly,Most advanced electric circuit design to make sure it work with best infiltrating ability.

● Inverter technique make sure the welder work in high efficiency but low power loss.

● Compact,light,high efficiency,safety,portable.

● Suitable for TIG Argon welding and MMA arc welding,easy to operate.

● Pulse current with more quick fall speed,much smaller wave value current.

● Adjusted pulse control,can be used for Automatic welding.

● Professionally for welding of kitchen equipment,the molds repairement,specially suitable for the welding of bike.

Contact us

  • Product Details
  • leave a message

  • MODEL WSE-200A
    WSME-200A
    WSE-250A
    WSME-250A
    WSME-315A WSME-400A
    Rated input voltage(V) 1~230 1~230 3~380 3~380
    No-load voltage(V)  50 55 60 60
    Current range(A)  10-200 10-250 10-315 10-400
    Rated duty(%) 60% 60% 60% 60%
    Input capacity(KVA)  4.5 6.2 8.9 13
    Class of insulation  F F F F
    Weight(Kg)  20 32 41 44
    Dimension(cm) 1PC 51.5×25.5×41.5 51.5×25.5×41.5 55×31×51.5 55×31×51.5
