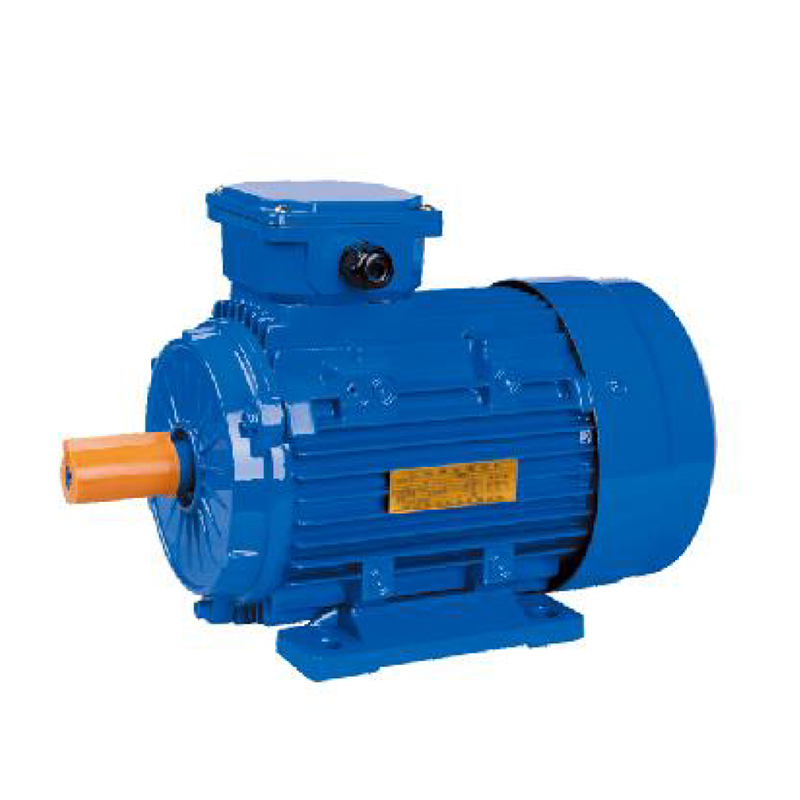

Y Series Three-Phase Asynch Ronous Motors

General introduction:

Y series motor is a kind of low-voltage three- phase asynchronous motor.Which is a basic series for general uses.This can meet requirements for general uses at home and abroad with frame range 80-315.

Y series has the advantage of high efficiency,energy saving,fine operation performance,small vibration,low noise,long serviced life,high reliability,convenient maintenance,big breakaway torque.

Fixing measurement and power grade completely conform to IEC standard.It employs Grander B insulation.IP44 class for shell protection and IC411 cooling mode.The rated voltage and frequency of 'Y"series are respectively 380V,400V,415V,440V and 50Hz,60Hz.

Y series motor is commonly app;IED in machinery and equipment without special requirements, such as agricultural machinery,food machinery,fan,agitator and air compressor,etc.



Contact us

  • Product Details
  • leave a message
  • Type Power
    (KW)    		 Amps
    (A)    		 Speed
    (r/min)    		 η
    (%)    		 Cos
    Φ    		 Tst
    Tn    		 Ist
    In    		 Tmin
    Tn    		 Tman
    Tn
    380V 50HZ 2P
    Y80M1-2 0.75 1.8 2830 75 0.84 2.2 6.5 1.5 2.3
    Y80M2-2 1.1 2.5 2830 77 0.86 2.2 7 1.5 2.3
    Y90S-2 1.5 3.4 2840 78 0.85 2.2 7 1.5 2.3
    Y90L-2 2.2 4.7 2840 80.5 0.85 2.2 7 1.4 2.3
    Y100L-2 3 6.4 2870 82 0.87 2.2 7 1.4 2.3
    Y112M-2 4 8.2 2890 85.5 0.87 2.2 7 1.4 2.3
    Y132S1-2 5.5 11 2900 85.5 0.88 2 7 1.2 2.3
    Y132S2-2 7.5 15 2900 86.2 0.88 2 7 1.2 2.3
    Y160M1-2 11 22 2930 87.2 0.88 2 7 1.2 2.3
    Y160M2-2 15 29 2930 88.2 0.88 2 7 1.2 2.3
    Y160L-2 18.5 36 2930 89 0.89 2 7 1.1 2.2
    Y180M-2 22 42 2940 89 0.89 2 7 1.1 2.2
    Y200L1-2 30 57 2940 90 0.89 2 7 1.1 2.2
    Y200L2-2 37 70 2950 90.5 0.89 2 7 1.1 2.2
    Y225M-2 45 84 2970 91.5 0.89 2 7 1 2.2
    Y250M-2 55 103 2970 91.5 0.89 2 7 1 2.2
    Y280S-2 75 140 2970 92 0.89 2 7 0.9 2.2
    Y280M-2 90 167 2970 92.5 0.89 2 7 0.9 2.2
    Y315S-2 110 200 2980 92.5 0.89 1.8 5.8 0.9 2.2
    Y315M-2 132 237 2980 93 0.89 1.8 6.8 0.9 2.2
    Y315L1-2 160 286 2980 93.5 0.89 1.8 6.8 0.9 2.2
    Y315L2-2 200 356 2980 93.5 0.89 1.8 6.8 0.8 2.2
    380V 50HZ 4P
    Y80M1-4 0.55 1.5 1390 73 0.75 2.4 5 1.7 2.3
    Y80M2-4 0.75 2 1390 74.5 0.76 2.3 6 1.6 2.3
    Y90S-4 1.1 2.8 1400 78 0.78 2.3 6.5 1.6 2.3
    Y90L-4 1.5 3.7 1400 79 0.79 2.3 6.5 1.6 2.3
    Y100L1-4 2.2 5 1430 81 0.82 2.2 7 1.5 2.3
    Y100L2-4 3 5.8 1430 82.5 0.81 2.2 7 1.5 2.3
    Y112M-4 4 8.8 1400 84.5 0.82 2.2 7 1.5 2.3
    Y132S-4 5.5 12 1400 85.5 0.84 2.2 7 1.4 2.3
    Y132M-4 7.5 15 1400 87 0.85 2.2 7 1.4 2.3
    Y160M-4 11 23 1460 88 0.84 2.2 7 1.4 2.3
    Y160L-4 15 30 1460 88.5 0.85 2.2 7 1.4 2.3
    Y180M-4 18.5 36 1470 91 0.86 2 7 1.2 2.2
    Y180L-4 22 43 1470 91.5 0.86 2 7 1.2 2.2
    Y200L-4 30 57 1470 92.2 0.87 2 7 1.2 2.2
    Y225S-4 37 70 1480 91.8 0.87 1.9 7 1.2 2.2
    Y225M-4 45 84 1480 92.3 0.88 1.9 7 1.1 2.2
    Y250M-4 55 103 1480 92.6 0.88 2 7 1.1 2.2
    Y280S-4 75 140 1480 92.7 0.88 1.9 7 1 2.2
    Y280M-4 90 164 1480 93.5 0.89 1.9 7 1 2.2
    Y315S-4 110 201 1480 93.5 0.89 1.8 6.8 1 2.2
    Y315M-4 132 241 1490 94 0.89 1.8 5.8 1 2.2
    Y315L1-4 160 291 1490 94.5 0.89 1.8 6.8 1 2.2
    Y315L2-4 200 354 1490 94.5 0.89 1.8 6.8 0.9 2.2
    380V 50HZ 6P
    Y80M-5 0.55 1.8 910 71.5 0.7 2 5.5 1.5 2.2
    Y90S-6 0.75 2.3 910 72.5 0.7 2 5.5 1.5 2.2
    Y90L-6 1.1 3.2 910 73.5 0.72 2 5.5 1.3 2.2
    Y100L-6 1.5 4 940 77.5 0.74 2 6 1.3 2.2
    Y112M-6 2.2 5.6 940 80.5 0.74 2 6 1.3 2.2
    Y132S-6 3 7.2 960 83 0.76 2 6.5 1.3 2.2
    Y132M1-6 4 9.4 960 84 0.77 2 6.5 1.3 2.2
    Y132M2-6 5.5 13 960 85.3 0.78 2 6.5 1.3 2.2
    Y160M-6 7.5 17 970 86 0.78 2 6.5 1.3 2
    Y160L-6 11 25 970 87 0.78 2 6.5 1.2 2
    Y180L-6 15 31 970 89.5 0.31 1.8 6.5 1.2 2
    Y200L1-6 18.5 38 970 89.8 0.83 1.8 6.5 1.2 2
    Y200L2-6 22 45 970 90.2 0.83 1.8 6.5 1.2 2
    Y225M-6 30 60 980 90.2 0.85 1.7 6.5 1.2 2
    Y250M-6 37 72 980 90.8 0.86 1.8 6.5 1.2 2
    Y280S-6 45 85 980 92 0.87 1.8 6.5 1.1 2
    Y280M-6 55 104 980 92 0.87 1.8 6.5 1.1 2
    Y315S-6 75 141 990 92.8 0.87 1.6 6.5 1 2
    Y315M-6 90 168 990 93.2 0.87 1.6 6.5 1 2
    Y315L1-6. 110 204 990 93.5 0.87 1.6 6.5 1 2
    Y315L2-6 132 245 990 93.8 0.87 1.6 6.5 1 2
    Y132S-8 2.2 5.6 710 80.5 0.71 2 5.5 1.2 2
    380V 50HZ 8P
    Y132M-8 3 7.3 710 82 0.72 2 5.5 1.2 2
    Y160M1-8 4 9.5 715 84 0.73 2 6 1.2 2
    Y160M2-8 5.5 12.7 715 85 0.74 2 6 1.2 2
    Y160L-8 7.5 17 715 85 0.75 2 5.5 1.2 2
    Y180L-8 11 24.4 730 87.5 0.77 1.7 6 1.1 2
    Y200L-8 15 32.9 730 88 0.76 1.8 6 1.1 2
    Y225S-8 18.5 39.7 735 89.5 0.76 1.7 6 1.1 2
    Y225M-8 22 46.4 735 90 0.78 1.8 6 1.1 2
    Y25DM-8 30 61.6 735 90.5 0.8 1.8 6 1.1 2
    Y280S-8 37 76.1 740 91 0.79 1.8 6 1.1 2
    Y280M-8 45 90.8 740 91.7 0.8 1.8 6 1 2
    Y315S-8 55 111 740 92 0.8 1.6 6.5 1 2
    Y315M-8 75 150 740 92.5 0.81 1.6 6.5 0.9 2
    Y315L1-8 90 179 740 93 0.82 1.6 6.5 0.9 2
    Y315L2-8 110 219 740 93.3 0.82 1.6 6.3 0.9 2
    380V 50HZ 10P
    Y315S-10 45 100.9 590 91.5 0.74 1.4 6 0.8 2
    Y315M-10 55 122.7 590 92 0.74 1.4 6 0.8 2
    Y315L2-10 75 165 590 92.5 0.75 1.4 6 0.8 2
